In the realm of modern manufacturing and do-it-yourself (DIY) projects, computer numerical control (CNC) technology has transformed the way enthusiasts and professionals alike approach building functional appliances.
Among these, CNC stove plans stand out as an innovative intersection of precision engineering, sustainable design, and practical utility. Whether for outdoor camping, off-grid living, or efficient home heating, CNC-made stoves offer unparalleled accuracy, durability, and customization.
This article delves into the intricacies of CNC-manufactured stoves, exploring their design principles, manufacturing processes, material choices, safety considerations, and real-world applications. Drawing on engineering expertise and recent advances in digital manufacturing, we’ll uncover why CNC ovens are gaining traction in 2025 and beyond.
Understanding CNC Technology in Furnace Design
CNC machining involves computer-controlled tools that cut, mill, or engrave materials with exceptional precision. Unlike traditional manual methods, CNC ensures repeatability and minimizes human error, making it ideal for complex furnace components such as combustion chambers, heat exchangers, and exhaust systems. Stove plans optimized for CNC typically include digital files in formats such as DXF, STL, or G-code that are compatible with plasma cutters, laser engravers, or routers.
The concept of CNC stoves grew out of the maker movement in the early 2010s, when open-source platforms like Thingiverse and Instructables began sharing designs for rocket stoves and biomass burners.
By 2025, with affordable desktop CNC machines from brands like Shapeoko and Glowforge becoming commonplace, these plans have democratized access to high-quality stoves. For example, a basic rocket stove-known for its efficient fuel combustion-can be made from sheet metal using a CNC plasma cutter, reducing assembly time from days to hours.
Key benefits of CNC stove designs include scalability and modularity. Designers can virtually iterate prototypes using software such as Fusion 360 or SolidWorks, simulating airflow and heat distribution prior to physical production.
This digital workflow not only reduces costs, but also allows for customization, such as adjusting dimensions for portable backpacking stoves or larger wood-burning stoves for cabins.
Design Principles for Effective CNC Ovens
Designing effective CNC stoves requires a blend of thermodynamics, materials science, and user-centered design. At the core is the combustion system: for wood or pellet stoves, an insulated firebox promotes complete combustion, minimizing smoke and maximizing heat output. CNC precision allows for intricate features such as vortex inlets for better oxygen mixing, which can increase efficiency by up to 30% over handcrafted versions.
Start with a needs assessment. For a backpacking stove, prioritize lightweight materials and compact folding designs. Plans might include laser-cutting aluminum sheets into interlocking panels that assemble without tools. In contrast, a home heating stove might include CNC-machined steel baffles to direct heat evenly.
Thermal modeling is critical. Using finite element analysis (FEA) in CAD software, designers predict hot spots and stress points. For example, a typical rocket stove design features a J-tube configuration: a vertical chimney draws air through a horizontal feed tube, creating a natural draft. CNC ensures that the inside diameter of the tube is accurate-often 4-6 inches-to optimize the rocket effect, where flames roar upward like a jet engine.
Integrating smart features is a growing trend. Advanced plans include slots for thermocouples or IoT sensors, allowing remote monitoring via apps. This is particularly useful for biomass stoves in remote areas, where fuel efficiency has a direct impact on sustainability.
Materials and Fabrication Techniques
Material selection is critical in CNC furnace designs, balancing cost, durability, and heat resistance. Stainless steel (grades 304 or 316) is a staple for its corrosion resistance and ability to withstand temperatures up to 1,600°F. CNC plasma cutting excels here, piercing thick sheets with minimal distortion. For budget-friendly options, mild steel coated with high-temperature paint will suffice, though it will require periodic maintenance.
Aluminum alloys shine in portable designs for their light weight and excellent thermal conductivity, but they’re limited to lower-heat applications such as alcohol stoves. CNC milling or waterjet cutting preserves aluminum’s integrity without heat distortion.
Exotic materials like titanium are emerging for ultralight backpack stoves. CNC machining allows thin-walled designs that reduce weight by 40% while maintaining strength. Ceramic inserts CNC machined from aluminum oxide can line combustion chambers to improve insulation.

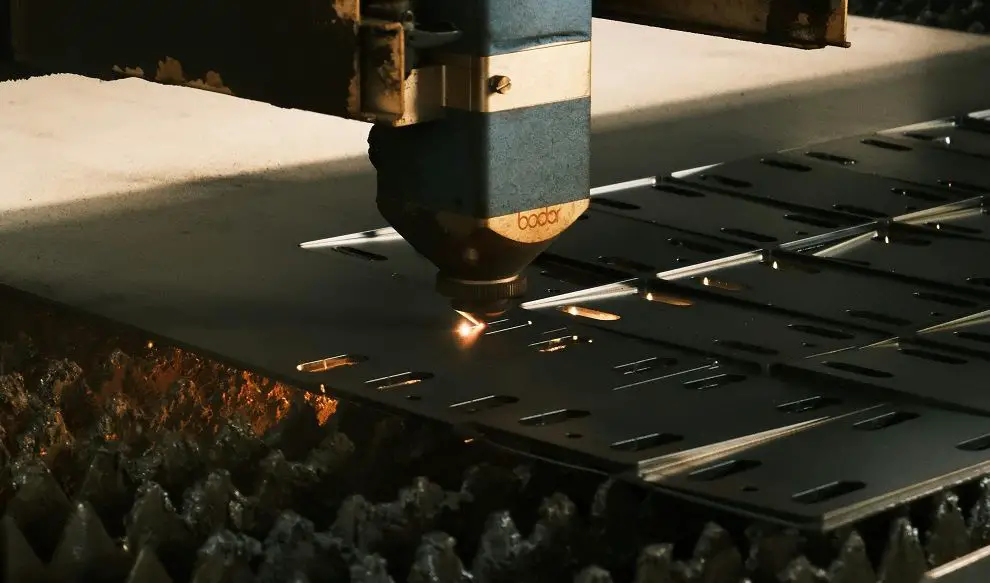

The manufacturing process typically begins with the preparation of digital files. A designer uploads plans to CAM software, which generates toolpaths. For a flat-pack stove, CNC laser cutting produces panels with precise tabs and slots for easy welding or bolting. Finishing includes deburring edges and applying seals, such as silicone gaskets for airtight joints.
Safety during machining is non-negotiable. Always use personal protective equipment (PPE) such as gloves and eye protection, and ensure proper ventilation to avoid fumes from cutting lubricants.
Safety and Efficiency Considerations
No discussion of CNC oven designs is complete without addressing safety. Poorly designed stoves can lead to carbon monoxide buildup, fires, or structural failure. Expert plans include fail-safes such as overheat shutoffs and stable bases to prevent tipping.
Efficiency metrics, such as the International Stove Testing Protocol, guide optimization. A well-designed stove can achieve 80-90% thermal efficiency, converting more fuel into usable heat. This is critical in an era of climate awareness where low emission designs reduce particulate matter.
Testing is essential. Prototype stoves are burn tested in controlled environments, and emissions are measured with tools such as flue gas analyzers. The precision of the CNC supports rapid iterations-if a baffle warps, the design is digitally adjusted and re-cut.
Regulatory compliance varies by region. In the US, EPA-certified plans ensure that stoves meet indoor emission standards. For do-it-yourselfers, compliance with local codes prevents legal problems.
Real world applications and case studies
CNC stove plans have many applications. In disaster relief, organizations such as the Red Cross use flat-packed, CNC-machined rocket stoves for quick assembly in camps. A notable example is the “BioLite”-inspired designs, in which CNC-cut grates integrate thermoelectric generators to recharge devices with heat.
For off-grid enthusiasts, plans like the “Batch Box Rocket” heater-popular on forums like Permies.com-use CNC for custom firebricks that heat homes with minimal wood. In urban settings, balcony-safe ethanol stoves with CNC-engraved decorative panels combine functionality with aesthetics.
In a 2024 case study, a community in rural Alaska adopts CNC plans for pellet stoves. Using local makerspaces, residents fabricated units from recycled metal, reducing heating costs by 50% during harsh winters.
Future trends point to AI-driven design. Tools such as generative AI in CAD software optimize plans for minimal material waste, in line with circular economy principles.
Embracing CNC for Sustainable Stoves
CNC stove plans represent the pinnacle of accessible innovation, empowering individuals to create efficient, safe and customized heating solutions. From design to installation, CNC’s precision elevates DIY projects to professional standards, promoting sustainability and self-reliance. As technology advances, expect more integrated features like automated fuel feeds. Whether you’re a novice builder or a seasoned engineer, starting with open-source plans and iterating through CNC can yield rewarding results. By adhering to best practices in design, materials, and safety, CNC stoves not only warm rooms, but also ignite creativity in the maker community.
