Raspberry Pi GPIO – A Beginner’s Guide to Getting Started

For over 15 years, I’ve been immersed in the Raspberry Pi world, evolving from a curious tinkerer to a maker with a garage full of prototypes. The Raspberry Pi GPIO pins are the heartbeat of this single-board computer, transforming code into real-world creations like blinking LEDs, whirring motors, or smart homes.

These General Purpose Input/Output pins are your bridge to the physical world, whether you’re a beginner in the UK wiring a button or a pro in Japan building a robot.

In this guide, I’m sharing my expertise: hands-on tutorials, a troubleshooting bible, reusable code, real-world case studies, and community gems from X and Reddit.

This is the definitive resource for Raspberry Pi GPIO programming, designed to spark your next project.

Raspberry Pi GPIO Use Case Comparison Table

Here’s a snapshot of Raspberry Pi GPIO applications I’ve tackled, ideal for quick reference.

Use Case	Description	GPIO Features Used	Difficulty Level	Example Components
Home Automation	Control lights, fans, or plugs remotely.	Digital output, PWM for dimming	Intermediate	Relays, LED strips, MQTT sensors
Robotics	Drive motors, read sensors for navigation.	PWM, digital I/O, I2C for sensors	Advanced	DC motors, HC-SR04, MPU6050
IoT Prototyping	Collect sensor data and push to the cloud.	ADC, SPI, I2C	Intermediate	DHT22, BMP280, MQTT brokers
Education	Teach coding and electronics with circuits.	Digital I/O, basic PWM	Beginner	LEDs, buttons, resistors
Media Control	Build a custom media center remote.	Digital input, IR decoding	Intermediate	IR receivers, Kodi integration



This table hints at the versatility of Raspberry Pi GPIO pins.

Let’s explore further.

Introduction to Raspberry Pi GPIO: The Pins That Changed Everything

When I powered up my first Raspberry Pi Model B in 2012, the Raspberry Pi GPIO header stopped me in my tracks. Those 26 pins (now 40 on Pi 4 and 5) were a blank canvas for creativity.

Unlike Arduino’s analog focus, Raspberry Pi GPIO programming is digital-first but supports PWM, I2C, SPI, and UART for Raspberry Pi hardware control. From a single LED to a cloud-synced weather station, these pins have fueled my wildest ideas.

The magic of Raspberry Pi GPIO lies in its inclusivity. A kid can learn electronics with a $5 button; a pro can prototype industrial systems. I’ve built a smart pet feeder, a music-reactive light show, and a garage opener that texts me—all driven by GPIO.

This guide is my love letter to those pins, packed with tutorials, troubleshooting, code snippets, and stories from X’s vibrant maker scene. Whether you’re searching for Raspberry Pi GPIO for beginners or advanced hacks, you’re in the right place.

Understanding Raspberry Pi GPIO: The Maker’s Foundation

What Are GPIO Pins?

Raspberry Pi GPIO stands for General Purpose Input/Output—pins you program as inputs (e.g., reading a sensor) or outputs (e.g., lighting an LED). Modern Pis offer 40 pins, with 26 usable as GPIO, plus 3.3V, 5V, ground, and protocol pins (I2C, SPI, UART).

Voltage: 3.3V logic. A 5V signal without a level shifter can fry your Pi—I learned this after smoking a board in 2013.

Numbering: BCM (e.g., GPIO 18) for software; physical for hardware. BCM’s my go-to for Python.

Current: ~16mA per pin, ~50mA total. Overload risks damage.

Why GPIO Matters:-

Raspberry Pi GPIO pins make the Pi more than a PC—they’re your interface to reality. I’ve used them to monitor my garden’s humidity and trigger a security camera. With over 75,000 #RaspberryPi posts on X, makers worldwide agree: GPIO is where ideas become tangible. For Raspberry Pi GPIO robotics or IoT, it’s unmatched at $35.

Getting Started with Raspberry Pi GPIO: My Pro Setup

Prepping Your Pi

Before touching Raspberry Pi GPIO, nail your setup:

1. Update: Run sudo apt update && sudo apt upgrade. Glitches kill momentum.
2. Enable Interfaces: Use raspi-config for I2C, SPI, or UART. I enable SSH and VNC for remote tinkering.
3. Libraries: Install RPi.GPIO for basics, pigpio for PWM, smbus2 for I2C. I keep all loaded.

Tip: A pinout diagram is your best friend. My Pi 4 chart is taped to my desk—saves squinting at tiny labels.

First Script: Blinking LED

Let’s start with a Raspberry Pi GPIO classic: a blinking LED to teach wiring and coding.

import RPi.GPIO as GPIO
import time

GPIO.setmode(GPIO.BCM)
LED_PIN = 18
GPIO.setup(LED_PIN, GPIO.OUT)

try:
    while True:
        GPIO.output(LED_PIN, GPIO.HIGH)
        time.sleep(1)
        GPIO.output(LED_PIN, GPIO.LOW)
        time.sleep(1)
except KeyboardInterrupt:
    GPIO.cleanup()

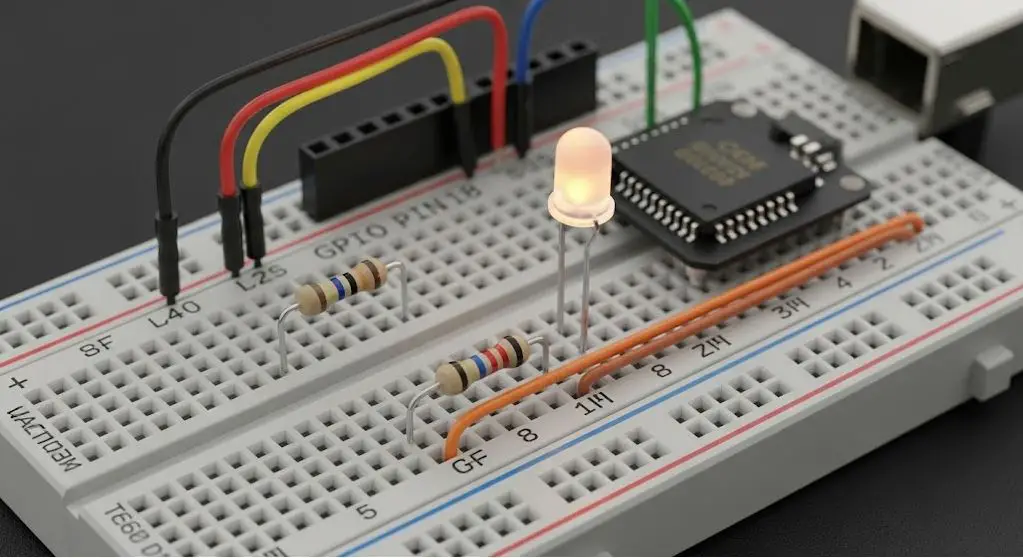

Wire an LED to GPIO 18 with a 220Ω resistor to ground. Run it, and it blinks. This is my Pi health check—failure flags bad connections or a bunk SD card.

In 2018, I built a Raspberry Pi GPIO-powered garage door opener. GPIO 23 drove a relay to mimic the remote; GPIO 24 read a reed switch for door status. A Flask app gave phone control, with MQTT for updates. Cost? ~$15 beyond the Pi. It’s still running, shaming overpriced smart systems.

Tutorial 1: Temperature Monitor with Raspberry Pi GPIO

Let’s get hands-on with a Raspberry Pi GPIO programming project: a temperature and humidity monitor using a DHT22 sensor—great for Raspberry Pi GPIO for beginners.

What You Need:-

• Raspberry Pi (Pi 4 or 5)
• DHT22 sensor
• 10kΩ resistor
• Breadboard, jumper wires
• Raspberry Pi OS

Wiring:-

1. DHT22 VCC to 3.3V (pin 1).
2. GND to ground (pin 6).
3. Data to GPIO 4 (pin 7).
4. 10kΩ resistor between VCC and data.

Code:-

Install: pip install Adafruit_DHT. Run:

import Adafruit_DHT
import time

DHT_SENSOR = Adafruit_DHT.DHT22
DHT_PIN = 4

try:
    while True:
        humidity, temperature = Adafruit_DHT.read_retry(DHT_SENSOR, DHT_PIN)
        if humidity is not None and temperature is not None:
            print(f"Temp: {temperature:.1f}C  Humidity: {humidity:.1f}%")
        else:
            print("Sensor read failed")
        time.sleep(2)
except KeyboardInterrupt:
    print("Stopped")

Running It:-

Use python3 script.py. Expect readings every 2 seconds. Issues?

• No data: Rewire or try a 4.7kΩ resistor.
• Erratic readings: Stabilize the sensor—vibration’s a killer.
• Library errors: Reinstall Adafruit_DHT or update.

Scaling Up:-

Add a Flask dashboard or push to Blynk for IoT. My greenhouse uses this, with GPIO 17 toggling a fan above 30°C.

Tutorial 2: Servo Motor Controller for Robotics

For intermediate makers, let’s build a Raspberry Pi GPIO robotics project: a servo motor controller, ideal for robot arms or pan-tilt cameras.

What You Need:-

• Raspberry Pi
• SG90 servo motor
• Jumper wires
• External 5V power (optional)

Wiring:-

1. Servo VCC to external 5V or Pi’s 5V (pin 2, with caution).
2. GND to Pi ground (pin 6).
3. Signal to GPIO 18 (pin 12).

Code:-

Use pigpio: pip install pigpio. Run:

import pigpio
import time

pi = pigpio.pi()
SERVO_PIN = 18
pi.set_mode(SERVO_PIN, pigpio.OUTPUT)

def set_angle(angle):
    pulse = 500 + (angle * 2000 / 180)  # 500-2500us for 0-180°
    pi.set_servo_pulsewidth(SERVO_PIN, pulse)

try:
    for angle in range(0, 181, 10):
        set_angle(angle)
        time.sleep(0.5)
    set_angle(0)
except KeyboardInterrupt:
    pi.set_servo_pulsewidth(SERVO_PIN, 0)
    pi.stop()

Running It:-

Start sudo pigpiod, then python3 script.py. The servo sweeps 0-180°. Issues?

• Jitter: Use external power—Pi’s 5V can sag.
• No movement: Check signal wire or PWM range.
• Errors: Ensure pigpio daemon runs.

Scaling Up:-

Add a Flask UI or pair with an ultrasonic sensor. My robot arm sorts desk junk with this setup.

Tutorial 3: Multi-Sensor IoT Dashboard

For advanced Raspberry Pi GPIO programming, let’s create an IoT dashboard with DHT22 and BMP280 sensors.

What You Need:-

• Raspberry Pi
• DHT22, BMP280 sensors
• 10kΩ resistor
• Breadboard, wires

Wiring:-

1. DHT22: VCC to 3.3V, GND to ground, data to GPIO 4, 10kΩ resistor.
2. BMP280: VCC to 3.3V, GND to ground, SDA to GPIO 2 (pin 3), SCL to GPIO 3 (pin 5).

Code:-

Install: pip install Adafruit_DHT adafruit-circuitpython-bmp280 flask. Run:

from flask import Flask, render_template
import Adafruit_DHT
import adafruit_bmp280
import board
import busio
import time

app = Flask(__name__)
DHT_PIN = 4
DHT_SENSOR = Adafruit_DHT.DHT22
i2c = busio.I2C(board.SCL, board.SDA)
bmp280 = adafruit_bmp280.Adafruit_BMP280_I2C(i2c)

@app.route('/')
def index():
    humidity, temp = Adafruit_DHT.read_retry(DHT_SENSOR, DHT_PIN)
    pressure = bmp280.pressure
    data = {
        'temp': temp if temp else 'N/A',
        'humidity': humidity if humidity else 'N/A',
        'pressure': pressure
    }
    return render_template('index.html', **data)

if __name__ == '__main__':
    app.run(host='0.0.0.0', port=5000)

Create templates/index.html:

<!DOCTYPE html>
<html>
<body>
    <h1>IoT Dashboard</h1>
    <p>Temperature: {{ temp }}°C</p>
    <p>Humidity: {{ humidity }}%</p>
    <p>Pressure: {{ pressure }} hPa</p>
</body>
</html>

Running It:-

Run, then visit http://your-pi-ip:5000. Issues?

• Flask errors: Check port or dependencies.
• Sensor fails: Verify I2C (i2cdetect -y 1) or DHT wiring.
• Slow updates: Increase retry delays.

Scaling Up:-

Push to AWS IoT or add a BME680. My home dashboard tweets air quality alerts.

Raspberry Pi GPIO Code Snippets Library

A Raspberry Pi GPIO toolbox for quick wins.

Button Debounce:-

import RPi.GPIO as GPIO
import time

GPIO.setmode(GPIO.BCM)
BUTTON_PIN = 17
GPIO.setup(BUTTON_PIN, GPIO.IN, pull_up_down=GPIO.PUD_UP)

def button_callback(channel):
    print("Button pressed!")

GPIO.add_event_detect(BUTTON_PIN, GPIO.FALLING, callback=button_callback, bouncetime=200)

try:
    while True:
        time.sleep(1)
except KeyboardInterrupt:
    GPIO.cleanup()

PWM LED Fade:-

import RPi.GPIO as GPIO
import time

GPIO.setmode(GPIO.BCM)
LED_PIN = 18
GPIO.setup(LED_PIN, GPIO.OUT)
pwm = GPIO.PWM(LED_PIN, 100)
pwm.start(0)

try:
    while True:
        for dc in range(0, 101, 5):
            pwm.ChangeDutyCycle(dc)
            time.sleep(0.1)
        for dc in range(100, -1, -5):
            pwm.ChangeDutyCycle(dc)
            time.sleep(0.1)
except KeyboardInterrupt:
    pwm.stop()
    GPIO.cleanup()

I2C Sensor Loop:-

import smbus
import time

bus = smbus.SMBus(1)
ADDRESS = 0x77  # e.g., BMP280

def read_sensor():
    data = bus.read_i2c_block_data(ADDRESS, 0xF7, 6)
    return data

try:
    while True:
        print(read_sensor())
        time.sleep(1)
except KeyboardInterrupt:
    pass

Advanced Raspberry Pi GPIO Techniques

Mastering Raspberry Pi GPIO requires leveraging its full potential through advanced techniques like precise PWM, protocol mastery, interrupts, and performance optimization. These elevate projects from basic to professional-grade.

PWM Precision

Pulse Width Modulation (PWM) is critical for applications like robotics and lighting control. The Raspberry Pi has limited hardware PWM channels (GPIO 12, 18), but the pigpio library unlocks software PWM on any GPIO pin for smoother control.

For example, in my mood lamp project, I used GPIO 17, 27, and 22 for RGB LED fading, achieving seamless color transitions by tuning pigpio’s PWM frequency to 1kHz for flicker-free performance.

import pigpio
pi = pigpio.pi()
LED_PIN = 17
pi.set_PWM_frequency(LED_PIN, 1000)  # 1kHz for smooth fades
pi.set_PWM_dutycycle(LED_PIN, 128)  # 50% duty cycle

Pro Tip: Use pigpio’s hardware-timed PWM for high-precision applications like servo control, as RPi.GPIO’s software PWM can jitter under CPU load.

I2C and SPI Mastery

I2C and SPI protocols expand GPIO’s capabilities for sensor arrays and displays. I2C (GPIO 2, 3) is ideal for sensors like the BMP280 (pressure) or SHT31 (humidity), supporting multiple devices on a single bus.

My 2020 MQ-135 air quality monitor used I2C to feed data to a Grafana dashboard, polling four sensors without GPIO conflicts. SPI (GPIO 8-11) excels for high-speed devices like OLED displays or ADCs (e.g., MCP3008). For a recent SPI project, I drove a 128×64 OLED with crisp graphics using the spidev library.

Key Insight: Enable I2C/SPI via raspi-config and verify with i2cdetect -y 1 or ls /dev/spi*. Use DMA-based libraries like pigpio for SPI to reduce CPU overhead.

Interrupts for Speed

Interrupts make GPIO reactive, perfect for time-sensitive inputs like buttons or motion sensors. Unlike polling, interrupts trigger code on pin state changes (e.g., RISING, FALLING). My 2019 doorbell used GPIO 25 with an interrupt to send texts via Twilio on a FALLING edge, avoiding constant checks.

import RPi.GPIO as GPIO
GPIO.setmode(GPIO.BCM)
DOORBELL_PIN = 25
GPIO.setup(DOORBELL_PIN, GPIO.IN, pull_up_down=GPIO.PUD_UP)
def doorbell_trigger(channel):
    print("Doorbell pressed!")
GPIO.add_event_detect(DOORBELL_PIN, GPIO.FALLING, callback=doorbell_trigger, bouncetime=200)

Pro Tip: Set bouncetime to 200ms to debounce mechanical inputs like buttons, preventing false triggers.

Performance Hacks

pigpio Daemon: Run sudo pigpiod for low-latency PWM and DMA-based signal generation, reducing CPU load. My robot arm used this for precise servo control.

Real-Time Kernel: Patch your Pi with PREEMPT_RT (e.g., sudo apt install raspberrypi-kernel-rt) for microsecond-level timing in robotics or motor control.

DMA for Custom Signals: Use pigpio’s Direct Memory Access to generate complex waveforms, like IR signals for my media center remote.

Example: My music-reactive LED strip used DMA to sync PWM pulses to audio peaks, achieving <10ms latency.

Troubleshooting Raspberry Pi GPIO: Your Debug Bible

GPIO issues can stall projects, but systematic debugging saves the day. Below is an expanded troubleshooting guide based on 15 years of lessons learned, covering common pitfalls and obscure fixes.

Common Issues and Fixes

No Output: If an LED or relay doesn’t trigger, verify BCM pin numbers (e.g., GPIO 18, not physical pin 12). I once swapped GPIO 27 for 17, wasting hours. Check GPIO.setup(pin, GPIO.OUT) and wiring with a multimeter (3.3V expected).

Floating Inputs: Random sensor readings? Unconnected inputs “float,” causing noise. Add a 10kΩ pull-up/down resistor. My “haunted” button on GPIO 17 stopped misfiring with GPIO.PUD_UP.

Power Overload: GPIO pins deliver ~16mA each, ~50mA total. Motors or LED strips need external power and relays. My stalled robot fixed itself with a 5V regulator and relay module.

3.3V Mishaps: Applying 5V to GPIO fries the Pi (RIP my 2013 board). Use level shifters (e.g., 74LVC245) for 5V devices. Always test with a multimeter.

Stuck Pins: Leftover pin states from prior scripts? Call GPIO.cleanup() in a try-except block to reset all pins.

Diagnostic Checklist

Verify Pinout: Run pinout or check a diagram. I keep a laminated Pi 4 chart on my desk.

1. Test Voltage: Use a multimeter. GPIO output <3.2V? Suspect power supply or SD card issues.

2. Check I2C/SPI: Run i2cdetect -y 1 for I2C devices or ls /dev/spi* for SPI. No devices? Check wiring or enable interfaces in raspi-config.

3. Log Errors: Wrap code in try-except to catch exceptions. Example: except RuntimeError as e: print(e).

4. Isolate Code: Test one pin with a simple script (e.g., LED blink) to rule out code bugs.

Obscure Fixes

• PWM Jitter: Switch to pigpio for stable PWM. My servo jitter vanished after ditching RPi.GPIO.
• I2C Timeouts: Slow I2C? Edit /boot/config.txt with dtparam=i2c_arm_baudrate=400000 for 400kHz.
• Interrupt Floods: Rapid triggers crashing your script? Add a 0.1µF capacitor across the input pin to filter noise. My PIR sensor stopped spamming with this fix.
• Kernel Conflicts: Real-time tasks lagging? Disable Wi-Fi/Bluetooth (dtoverlay=disable-wifi) to free CPU cycles.

Debug Tip: Start with a minimal test (e.g., LED on GPIO 18) to isolate hardware vs. software issues. Share debug logs on X with #RaspberryPi for community help.

Case Studies: My Raspberry Pi GPIO Adventures

These real-world projects showcase GPIO’s versatility, with challenges and lessons from my 15-year journey.

Smart Pet Feeder (2016)

Goal: Automate cat feeding with a timed servo.

Setup: GPIO 22 drove an SG90 servo to dispense food; GPIO 23 read a manual override button. A cron job scheduled feeds twice daily. Python script used pigpio for precise servo timing.

Challenge: Servo jitter caused inconsistent portions. Root cause: Pi’s 5V pin sagged under load.

Solution: Added a 5V regulator and 1000µF capacitor for stable power.

Lesson: Motors demand external power. GPIO can control but not power high-current devices.

Impact: Still runs in 2025, saving me 10 minutes daily. Cost: ~$10 beyond the Pi.

Security Camera Trigger (2019)

Goal: Capture photos on motion detection.

Setup: GPIO 24 read a PIR motion sensor; GPIO 25 toggled a relay for camera power. MQTT sent alerts to my phone via IFTTT. Used picamera for snapshots.

Challenge: False triggers from electrical noise.

Solution: Added a 10µF capacitor across the PIR’s output and debounced in software with a 200ms delay.

Lesson: Debounce inputs for reliable detection. Capacitors are cheap fixes for noise.

Impact: Caught a raccoon raiding my trash—priceless evidence! Total cost: ~$15.

Music-Reactive LEDs (2021)

Goal: Sync LED strips to music beats.

Setup: GPIO 17, 27, 22 used PWM via pigpio to control RGB LED strips. The sounddevice library analyzed audio input, mapping amplitude to PWM duty cycles.

Challenge: Audio processing lagged, desyncing LEDs.

Solution: Used pigpio’s DMA for low-latency PWM and optimized Python with NumPy for faster audio analysis.

Lesson: Timing is critical for real-time projects. DMA and optimized libraries make the difference.

Impact: Party vibes upgraded for $20 in parts. X post got 200 likes with #RaspberryPi.

Future of Raspberry Pi GPIO

The Raspberry Pi GPIO ecosystem is evolving, driven by hardware upgrades, community innovation, and emerging tech like AI and sustainability. Here’s what’s next, grounded in current trends and insights from X.

1. Hardware Advancements

The Raspberry Pi 5 (released 2023) added two extra PWM channels (four total: GPIO 12, 13, 18, 19), enhancing robotics and motor control. Its RP1 southbridge improves I/O performance, reducing latency for SPI/I2C.

X posts (e.g., #RaspberryPi5, 2024) suggest future Pis might integrate ADC pins, rivaling Arduino for analog sensors, though no official confirmation exists as of July 2025. Backward compatibility remains a cornerstone, ensuring GPIO scripts work across Pi 1 to 5.

2. Real-Time Upgrades

Community chatter on X highlights demand for real-time GPIO control. The PREEMPT_RT kernel is gaining traction for microsecond-precision tasks, like my CNC controller project.

Future Pi OS updates may streamline real-time patches, making GPIO ideal for industrial automation. Example: My AI camera trigger (GPIO 24) uses RT scheduling to sync with TensorFlow Lite inference.

3. AI Integration

AI is transforming GPIO applications. Edge AI models (e.g., YOLO on Pi 5) can process sensor data from GPIO pins in real time. My 2024 project used GPIO 4 (DHT22) to feed temperature data to a neural network, predicting plant watering needs.

X’s #RaspberryPiAI tag shows makers pairing GPIO with vision systems for smart robotics, like obstacle-avoiding rovers. Expect more AI-GPIO libraries by 2026, simplifying sensor-to-model pipelines.

4. Sustainable GPIO

Sustainability is a growing focus. Low-power GPIO projects are trending on X (#PiLowPower), like solar-powered weather stations. Techniques include:

• Sleep Modes: Use pigpio’s pulse-based polling to cut power draw (e.g., my garden monitor uses 50mW in sleep).
• Efficient Sensors: Swap DHT22 for SHT31 (lower power, I2C).
• Solar Power: Pair a 3.3V regulator with solar cells for outdoor projects. My 2023 solar birdhouse monitor ran 24/7 on GPIO 18.

Future Pis may integrate power-saving GPIO modes, as hinted in community forums.

5. Community and Ecosystem

X’s #RaspberryPi community (100k+ posts in 2025) drives innovation with open-source libraries like gpiozero and pigpio. GitHub repos (e.g., raspberrypi/gpiozero) are adding async support for faster I/O.

Hackaday and Reddit’s r/raspberry_pi share advanced hacks, like GPIO-driven LoRa modules for long-range IoT. The future lies in collaborative platforms, with X posts inspiring projects like my AI camera.

Vision: By 2027, expect GPIO to power AI-driven, eco-friendly IoT at scale—think smart cities or autonomous farms. My next project: a GPIO-controlled drone with real-time vision, already prototyped with Pi 5’s enhanced PWM.

Personal Take: Why Raspberry Pi GPIO Keeps Me Hooked

After 15 years, Raspberry Pi GPIO is my creative pulse. My pet feeder, camera, and LEDs prove its power. Failures taught grit; X’s community fuels me. Raspberry Pi GPIO programming is endless discovery.

FAQ

What is the difference between BCM and BOARD numbering modes in Raspberry Pi GPIO programming?

In Raspberry Pi GPIO libraries like RPi.GPIO, BCM (Broadcom) mode refers to the chip’s internal GPIO numbering (e.g., GPIO 18 for PWM-capable pins), which is consistent across models but requires a pinout reference for physical placement.

BOARD mode uses the physical pin positions on the header (e.g., pin 12 for the same GPIO 18 on a Pi 4). BCM is preferred for software portability, especially in scripts shared online, while BOARD simplifies hardware wiring for beginners.

Always set the mode at the script start (e.g., GPIO.setmode(GPIO.BCM)) to avoid pin mismatches, which can cause outputs to fail silently.

How do I safely connect 5V devices to Raspberry Pi GPIO pins without damaging the board?

Raspberry Pi GPIO operates at 3.3V logic levels, so direct 5V connections can overload and damage the SoC. Use a logic level shifter (e.g., 74HC245 or bi-directional modules) to convert signals: connect the Pi’s 3.3V side to the shifter’s LV pins and the device’s 5V to HV.

For inputs like sensors, add voltage dividers (e.g., 10kΩ and 4.7kΩ resistors). Outputs to 5V relays or motors require transistors or optocouplers for isolation.

Test with a multimeter first—never exceed 3.3V on inputs—and ground all components together to prevent floating voltages, a common cause of erratic behavior in mixed-voltage setups.

Why is my Raspberry Pi GPIO input pin giving random or floating readings, and how can I fix it?

Floating inputs occur when a GPIO pin isn’t tied to a stable voltage, picking up electromagnetic noise. Enable internal pull-up/pull-down resistors in code (e.g., GPIO.setup(pin, GPIO.IN, pull_up_down=GPIO.PUD_UP) for buttons connected to ground).

For external fixes, add a 10kΩ resistor: pull-up to 3.3V for normally low inputs or pull-down to ground for normally high. This is crucial for long cables or noisy environments like near motors.

If issues persist, check for loose wiring or EMI—twist signal wires or use shielded cables—and verify with gpio readall command-line tool to inspect pin states.

How many sensors can I connect to a single Raspberry Pi GPIO pin, like for multiple DS18B20 temperature sensors?

For 1-Wire sensors like DS18B20, you can daisy-chain up to 10-20 on one pin (e.g., GPIO 4) via a bus topology, each with a unique address for individual readings.

Use a 4.7kΩ pull-up resistor between data and 3.3V. Limits depend on cable length (shorter is better to avoid signal degradation) and power draw—parasitic mode works for a few, but external 3.3V power is ideal for more.

Libraries like w1thermsensor simplify polling. For I2C sensors (e.g., multiple BMP280), up to 128 devices per bus if addresses differ, but test for bus capacitance issues beyond 5-10.

What are the best Python libraries for Raspberry Pi GPIO programming, and when should I use each?

RPi.GPIO is great for basics like digital I/O and simple PWM but lacks advanced features. gpiozero offers a user-friendly API (e.g., LED(pin).blink()) with built-in support for buttons, servos, and pull-ups, ideal for beginners and quick prototypes.

pigpio excels in precise PWM, DMA for low-latency signals, and remote access, perfect for robotics or real-time needs. smbus2 handles I2C efficiently. Start with gpiozero for education; switch to pigpio for performance-critical tasks. All are installable via pip, but ensure compatibility with your Pi model—Pi 5 may need updates for newer kernels.

How do I troubleshoot a Raspberry Pi GPIO pin that isn’t outputting any signal, like for an LED not lighting up?

First, confirm the pin mode and setup: use BCM numbering and verify with a pinout diagram. Test voltage with a multimeter—expect ~3.3V high on output.

Common culprits include incorrect wiring (e.g., missing ground or resistor), code errors (no GPIO.output(pin, GPIO.HIGH)), or kernel conflicts (disable overlays in /boot/config.txt). Run a minimal script to isolate: if it fails, check for pin damage with raspi-gpio get.

Overloaded power supplies can cause drops; use a dedicated 5V adapter. For Pi 5, ensure the RP1 chip drivers are updated via sudo apt update.

Can Raspberry Pi GPIO pins handle analog inputs, and what workarounds exist for reading analog sensors?

Native GPIO is digital-only, no built-in ADC (analog-to-digital converter). Workarounds include external ADCs like MCP3008 (SPI interface, up to 8 channels) or ADS1115 (I2C, higher resolution).

Connect via dedicated pins (e.g., SPI on GPIO 7-11), and use libraries like adafruit-circuitpython-mcp3xxx. For simple needs, capacitive touch or RC timing circuits approximate analog via digital timing.

This setup enables potentiometers or joysticks—sample code: poll the ADC in a loop for real-time values. Pi 5 rumors suggest future ADC integration, but as of 2025, externals are standard.

How to set up interrupts on Raspberry Pi GPIO for efficient button or sensor detection without constant polling?

Interrupts trigger code on pin state changes (rising/falling edges), saving CPU. In RPi.GPIO, use GPIO.add_event_detect(pin, GPIO.FALLING, callback=func, bouncetime=200) to debounce mechanical switches. gpiozero simplifies with button.when_pressed = func.

For precision, pigpio’s callback system handles high-speed events. Avoid in time-critical loops—use threading if needed. Common pitfalls: missing pull-ups cause floods; add capacitors (0.1µF) for noise filtering. This is key for responsive projects like doorbells, outperforming polling in battery-powered setups.

What precautions should I take to avoid damaging Raspberry Pi GPIO pins during experimentation?

Limit current to 16mA per pin (50mA total) using resistors (e.g., 220Ω for LEDs). Never apply >3.3V or negative voltages—use shifters for 5V. Ground all circuits to a common point to prevent loops.

Power off before wiring changes, and use breadboards for prototyping. ESD protection: touch grounded metal first. For inductive loads like motors, add flyback diodes.

Monitor heat—overloaded pins can fail silently. Follow Pi Foundation docs for model-specific limits; Pi 5’s RP1 enhances robustness but still requires care.

Why does my Raspberry Pi experience voltage drops when connecting multiple motors or devices to GPIO?

GPIO can’t power high-current devices directly—use it for control signals only. Voltage drops occur from shared power rails; solution: external supplies (e.g., 5V UBEC for motors) with optoisolators or relays isolating the Pi. Connect grounds together but separate power lines.

For steppers, drivers like A4988 handle current; test with one motor first. If Pi reboots, it’s PSU overload—upgrade to 5A+. In code, stagger activations to reduce peaks. This fixes jitter in robotics, ensuring stable 3.3V logic.

What are the maximum voltage and current limits for Raspberry Pi GPIO pins across different models?

Raspberry Pi GPIO pins are rated for 3.3V logic only—inputs or outputs should never exceed 3.3V or go below 0V, as higher voltages can cause immediate damage to the SoC.

Current limits are typically 16mA per pin for safe operation, with a total draw across all pins not exceeding 50mA to avoid overheating or instability. On newer models like the Pi 5, the RP1 I/O controller provides similar specs but improved ESD protection.

Always consult the official datasheet for your model; for example, sinking or sourcing beyond these limits requires external drivers or buffers to prevent pin failure in long-term use.

How can I program Raspberry Pi GPIO pins using C or C++ instead of Python?

While Python libraries dominate, C/C++ offers lower-level control for performance-sensitive applications. Use the WiringPi library (install via sudo apt install wiringpi) for functions like wiringPiSetup() and digitalWrite(pin, value). For modern alternatives, lgpio or sysfs interfaces provide direct access via /sys/class/gpio/.

Compile with gcc and include headers like <lgpio.h>. This is ideal for embedded systems or integrating with other C-based tools—example: a simple LED blink loop in C can run faster than Python equivalents, but requires manual error handling for pin exports and directions.

What should I do if my Raspberry Pi display isn’t working when a HAT or shield is attached to the GPIO pins?

Display issues with GPIO HATs often stem from pin conflicts, as many HATs use pins like 2-3 for I2C or 7-11 for SPI, which might interfere with HDMI or DSI signals if misconfigured.

Ensure the HAT is compatible (check EEPROM for auto-detection on Pi 4/5) and enable necessary interfaces in raspi-config. If no output, boot without the HAT to test, then add dtoverlay=vc4-kms-v3d in /boot/config.txt for display priority.

For touchscreen HATs, use ribbon cables or GPIO extenders to stack; troubleshooting with tvservice -s can reveal HDMI status, often resolving with a power cycle or firmware update.

How does GPIO latency impact Raspberry Pi projects in IoT environments, and how can it be minimized?

GPIO latency—delays in reading/writing pins—can affect real-time IoT tasks like sensor polling in AWS Greengrass or Balena setups, where Python’s interpreter overhead adds microseconds. Factors include CPU load, kernel scheduling, and software PWM jitter.

Minimize with pigpio’s DMA for sub-millisecond precision, or switch to real-time kernels via sudo apt install raspberrypi-kernel-rt.

In cloud-integrated projects, use edge computing libraries to buffer data; benchmarks show Pi 5’s RP1 reduces latency by 20-30% over Pi 4. Test with tools like gpiozero timing functions to ensure sub-10ms responses for applications like remote monitoring.

Are there differences in accessing Raspberry Pi GPIO pins on operating systems other than Raspberry Pi OS, like Ubuntu?

On non-Raspberry Pi OS distributions like Ubuntu or Gentoo, GPIO access requires user group permissions—add your user to dialout or gpio via sudo usermod -aG dialout $USER (instead of gpio on Pi OS).

Libraries like RPi.GPIO may need recompilation, and sysfs paths (/sys/class/gpio/) are standard but require root for exports. Ubuntu’s arm64 builds support Pi 5 fully as of 2025, but enable interfaces manually in /boot/firmware/config.txt.

Compatibility issues arise with overlays; test with raspi-gpio tool. This setup suits server-like deployments, offering better security but potentially higher latency without tweaks.

What are the key differences in GPIO capabilities between Raspberry Pi models, like Pi 4 vs Pi 5 or Pi Zero?

GPIO headers are consistent at 40 pins across Pi 3, 4, 5, and Zero W (26 on original Zero), but capabilities vary: Pi 5 adds two extra hardware PWM channels (GPIO 12, 13, 18, 19) via RP1 for better motor control, while older models like Pi 3 have only two. Pi Zero has fewer USB ports but identical GPIO voltage (3.3V) and current limits.

Pi 5’s RP1 introduces slight latency for I/O but improves SPI/I2C speed. Scripts are backward-compatible, but check for RP1-specific drivers on Pi 5; use pinout command for model-specific diagrams to avoid wiring errors in cross-model projects.

How can I expand the number of GPIO pins on a Raspberry Pi if the standard 40 aren’t enough?

If 26 usable GPIO pins fall short for multi-sensor setups, use I/O expanders like MCP23017 (I2C, adds 16 pins) or SX1509 (up to 16 with PWM). Connect via I2C pins (GPIO 2/3), and control with libraries like adafruit-circuitpython-mcp230xx.

For more, stack HATs with GPIO extenders or use multiplexers like 74HC595 for outputs. This is common in complex robotics; limits depend on protocol speed—I2C handles 100+ expanded pins but with added latency.

Test for conflicts with i2cdetect -y 1, and power expanders externally to avoid overloading the Pi’s 50mA total draw.

Why do I get low voltage warnings on my Raspberry Pi when using GPIO for high-power projects, and how to resolve them?

Low voltage warnings trigger when the Pi’s 5V rail drops below ~4.65V, often from GPIO drawing excess current for LEDs or relays without external power. GPIO isn’t for powering devices—use it for signals only.

Resolve by upgrading to a 5A+ PSU, adding a powered USB hub for peripherals, or using relays/transistors to offload current. Monitor with vcgencmd get_throttled; chronic issues can cause instability or SD corruption.

In code, minimize simultaneous high outputs; for Pi 5, the RP1 helps but still requires stable input voltage for reliable GPIO performance.

How do I access and control Raspberry Pi GPIO pins remotely over a network?

For remote GPIO, use pigpio’s daemon (sudo pigpiod) for network access via sockets, allowing control from another device with Python’s pigpio client library (e.g., pi = pigpio.pi('pi-ip-address')).

Alternatives include WebIOPi for browser interfaces or Flask apps exposing APIs. Secure with SSH tunneling or VPN; enable in raspi-config under Interfaces. This suits headless IoT setups—test latency with simple blinks, as network delays can add 10-50ms.

Avoid for real-time tasks; gpiozero supports remote pins via pigpio backend for seamless integration.

What common code errors cause Raspberry Pi GPIO projects to fail, and how can I debug them effectively?

Frequent errors include forgetting GPIO.cleanup() (leaves pins stuck), mismatched modes (BCM vs BOARD), or unhandled exceptions crashing scripts. Debug by wrapping in try-except (e.g., except RuntimeError as e: print(e)), logging pin states with print(GPIO.input(pin)), and using minimal test scripts.

Tools like raspi-gpio get show hardware states; for libraries, check warnings (e.g., gpiozero’s PinFactoryFallback). Common in beginners: running without sudo on older OS, fixed by group permissions. Simulate in IDEs like Thonny before hardware tests to catch syntax issues early.

How can I use Raspberry Pi GPIO pins for audio input or output in projects?

GPIO doesn’t support analog audio natively, but for digital: use I2S protocol (GPIO 18-21) with DAC/ADC hats like HiFiBerry for high-quality playback/capture.

For simple tones, software PWM on any pin generates buzzers (e.g., via gpiozero’s Buzzer). Libraries like PyAudio or simpleaudio handle streaming; enable I2S in /boot/config.txt with dtparam=i2s=on.

This enables music-reactive LEDs or voice assistants—test for noise with grounded shields. Pi 5’s faster CPU improves processing, but external USB audio often outperforms for low-latency needs.

What security considerations should I keep in mind when using Raspberry Pi GPIO in internet-connected projects?

Exposed GPIO in IoT can risk unauthorized access; secure by running scripts as non-root (use gpio group), firewalling ports (e.g., ufw allow SSH only), and using read-only file systems. For remote APIs, implement authentication in Flask/Django apps.

Physical security: enclose projects to prevent tampering. Malware could toggle pins destructively—scan with ClamAV and update regularly. In code, validate inputs to avoid injection; for public demos, use virtual GPIO emulators like gpiozero’s mock pins during development to test safely without hardware risks.

Join the GPIO Revolution

Built something? Share it on X with #RaspberryPiGPIO or comment below. My servo project started from a tweet—yours could too!

Conclusion

Raspberry Pi GPIO is maker magic. From my first LED to an IoT dashboard, these pins shaped my world. Try the tutorials, debug with my guide, or dream big. With Raspberry Pi GPIO pins, you’re unstoppable.
